BEST HUB MOTOR DRIVE KIT 2021
The Maxfind Drive Kit Has An Impressive Stamina!
Maxfind M5 Drive Kit uses the core technology of the Max4 PRO electric skateboard and is customized as a DIY Kit that can be retrofitted. This is the best choice for people who like personality. It can adapt to any wooden board and make your style unique!

NEW CUSTOMIZED M5 HUB MOTOR
Super Fast and Power!
Maxfind M5 Drive Kit equipped with the 750W*2 motors which have more torque with smaller input current. The internal structure of the motor has been optimized, meaning the PU sleeves are easier to swap and less noise issues. And the exclusive customized motor caps make the motors look more advanced and more beautiful.
- 25 Mph / 40 Kph Top Speed
- 750*2 Watts High Torque Motors
- 30% Top Climbing

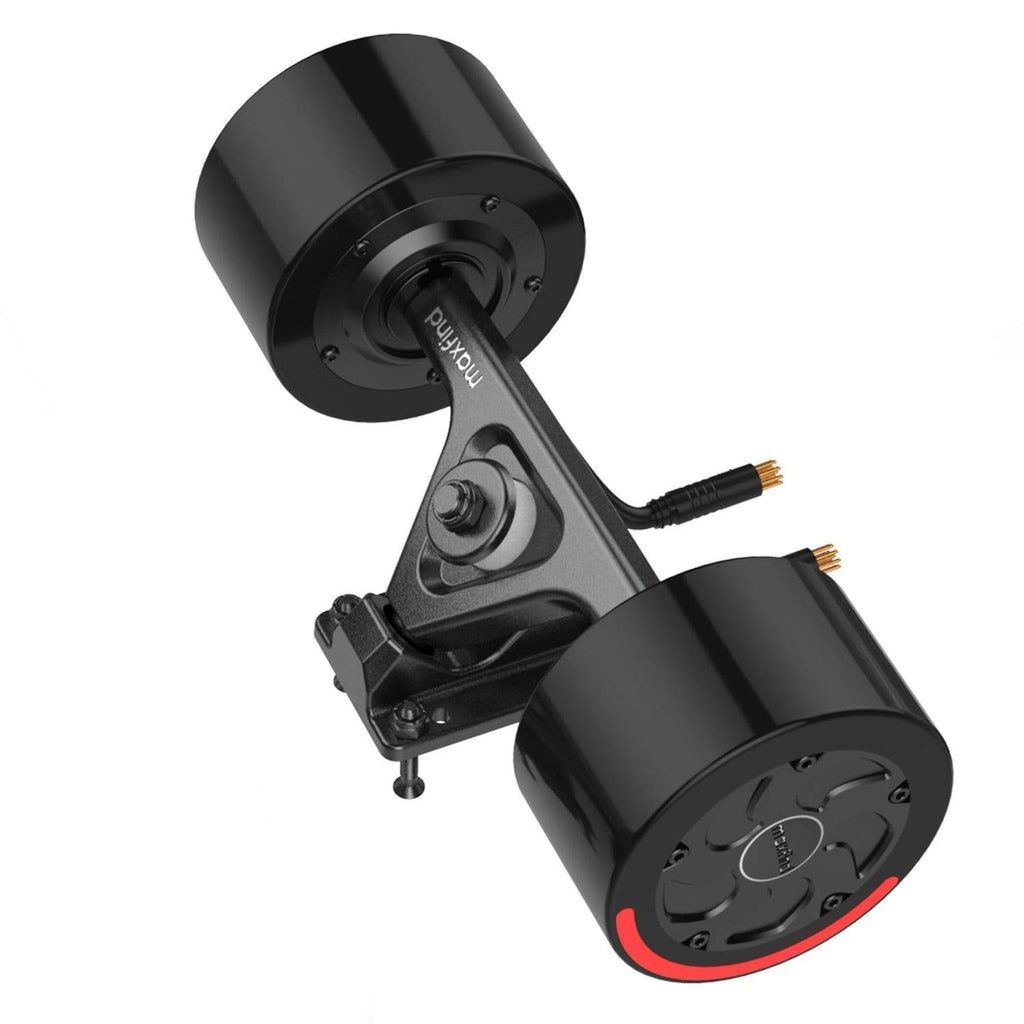

MAX II TRUCK
Precise Carving, Fantastic Ridinging Experience!
The new Max II Truck uses proprietary forging and CNC milling manufacturing processes to improve stability at high speeds.
- 45° Precise Truck
- Anti-Scratch Coating
- 78A Elastic PU Bushing

FAST-SWAP BATTERY DESIGN
Change The Battery Within 10 Seconds, Start New Journey!
You can choose the battery combination version you want to meet the needs of long-distance travel.
- Standard Range Version: 12 miles / 20 km
- Long Range Version: 24 miles / 40 km ↑
- Super Range Version: 36 miles / 60 km ↑↑

ELECTRIFY ANY SKATEBOARD
ESC IPX7, Hub Motor IP65, Battery IP65
Like a normal truck, the Maxfind M5 Drive Kit can be mounted to any skateboard. Giving you the freedom to choose your favorite deck and recycle it into a full on riding machine. With its compact size it also qualifies as a perfect travel mate.

NEW HOBBYWING FOC ESC
Enjoy Hair-Raising Top-Speeds Of 25mph With Max-Mode Activated.
Accurately adjust the power output to make acceleration and braking smoother Professional-grade power adjustment and Hobbywing motor cooperate tacitly, greatly improving energy efficiency Bring you a better and comfortable riding experience.
- Max - Turbo Mode 55%↑
- EBS Electronic Brake System

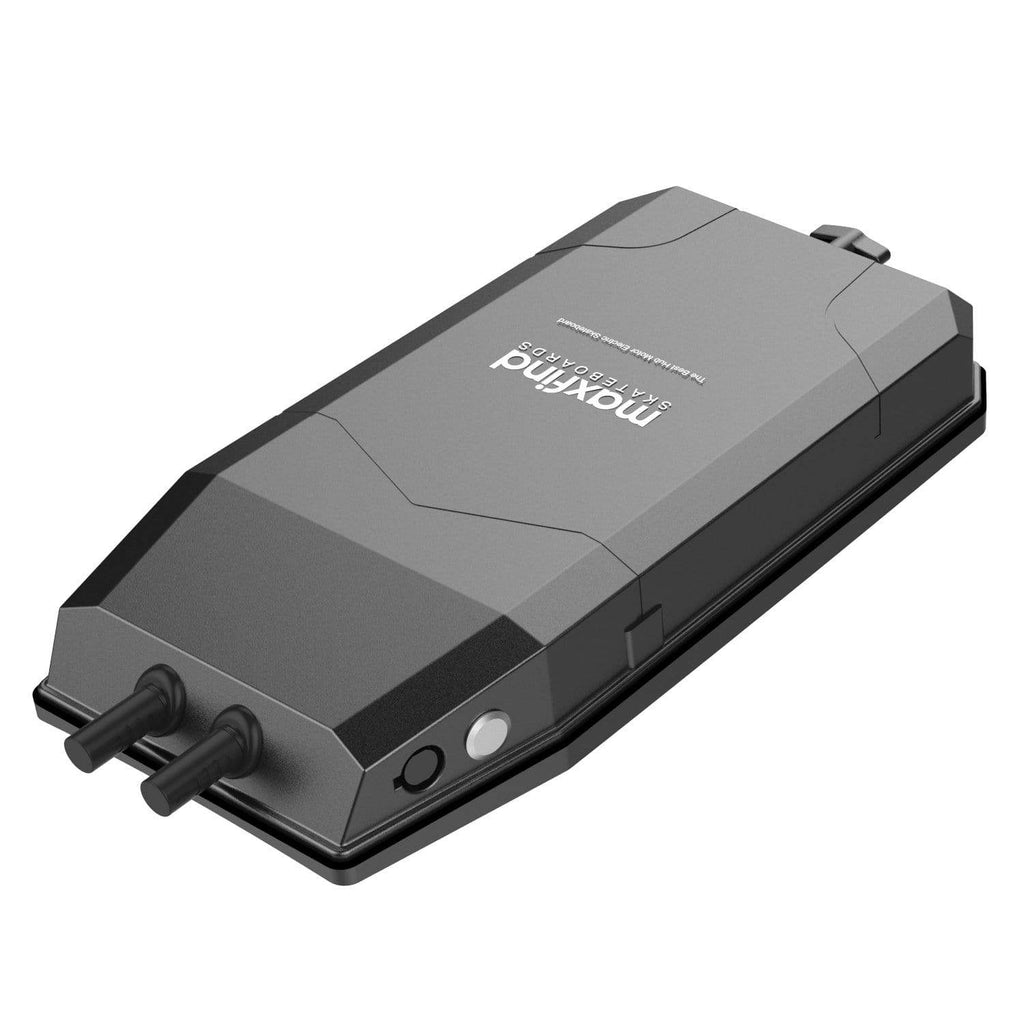

10S2P 36V POWERFUL SAMSUNG BATTERY
Super Fast Charging Time!
The M5 Drive Kit is equipped with Samsung 158Wh, high-compacity lithium battery makes the board easier to accelerate and provides more torque with smaller output current. This battery is small in size and easy to carry, and is the best among other boards of the same level.

LCD DISPLAY REMOTE CONTROL
Supplied by Hobbywing
Hobbywing latest ESC guarantees pow-erful acceleration. Four adjusted modes help you to switch quickly to face different environments. High-definition LCD screen provides intelligent reading of rich riding data.
- 4 Safe Riding Modes
- 2.4G Signal Range
- LCD Screen

Specifications
Max Speed |
25 mph / 40 kph |
Standard Range Version |
12 miles / 20 km |
Long Range Version |
24 miles / 40 km ↑ |
Super Range Version |
36 miles / 60 km ↑↑ |
Climbing Grade |
30% |
Hub Motor Power |
750W*2 |
Hub Motor Torque |
5 N.m*2 |
Fast-Swap Battery |
√ |
Battery |
Samsung 22P 4.4Ah 158Wh 36V |
Esc |
Hobbywing |
Romote Mode |
4 Mode (LCD) |
Truck |
Max II 45° Truck |
|
(10.6 inch / 270 mm CNC Precision Forging) |
Braking System |
Electronic Regenerative Braking |
WaterProof Rating |
IP65 |
Wheel |
96 mm / 3.8 inch |
Load |
220 Ibs / 100 kg |
Charging Time |
120 min |

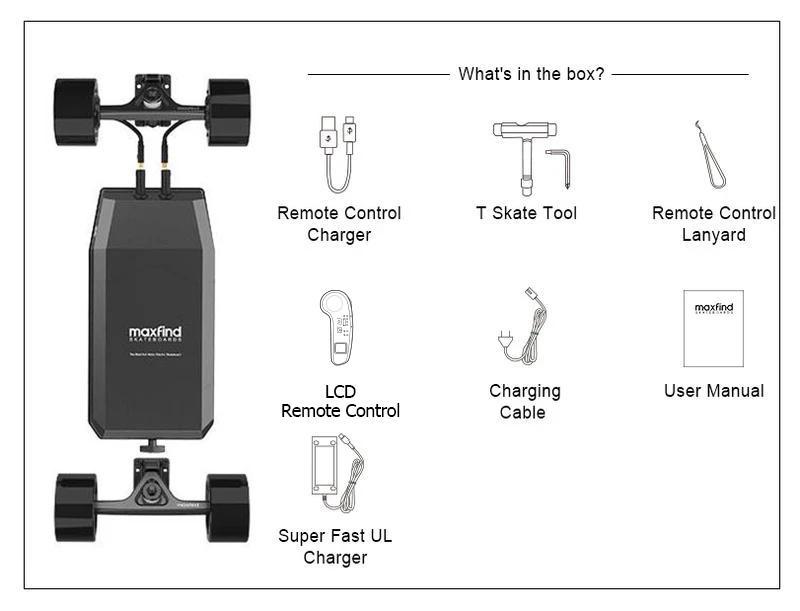

What's in the Box
